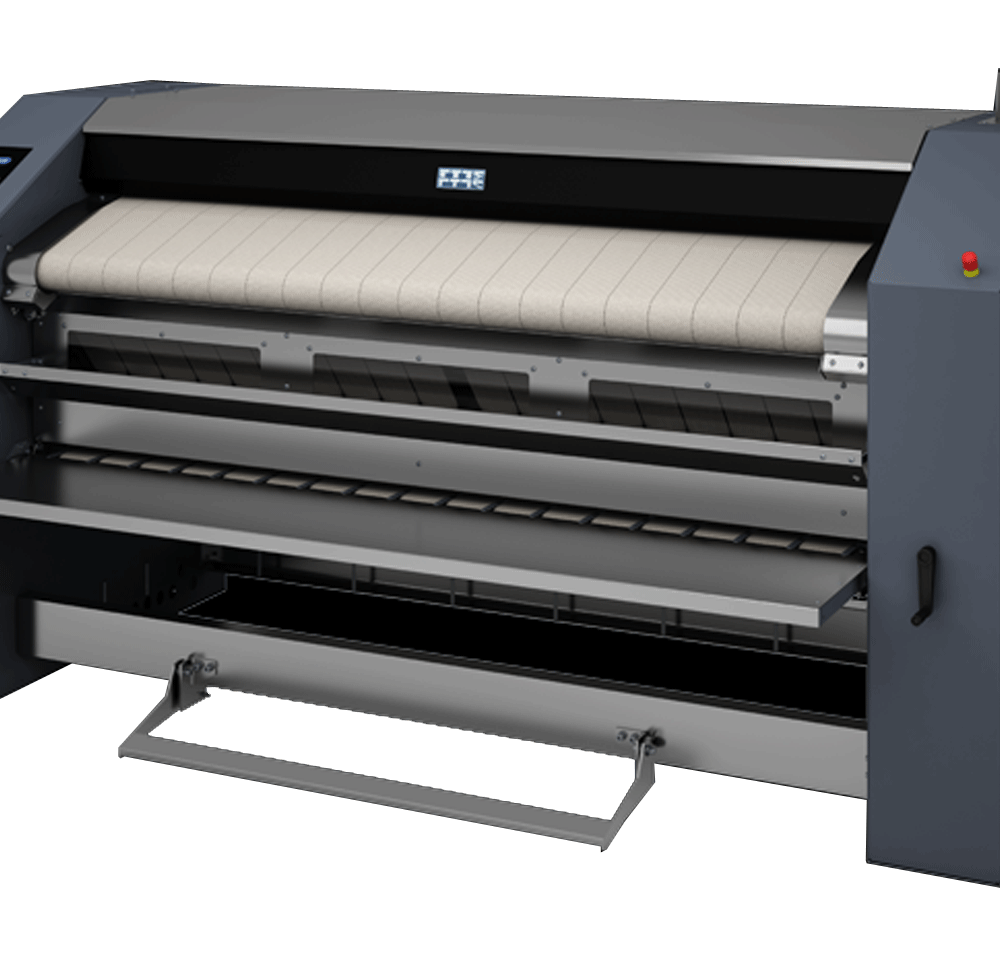

Flatwork ironer Primus IR/IF 50-320

Large surface contact with linen over an angle of 300°

Finger protection and emergency button for more safety

Durable NOMEX ironing belts

Automatic cool down

Easy to operate microprocessor: 20 pre-set ironing programs

Indication of ironing speed and temperature

Reverse mode possible

Variable setups for folding (IF)

IF model: front output table

IF model: integrated length folder model

IR model: front and rear output troughs

Frequency controlled motors

Easy to remove lint filters

Standard anti-static bar

Easyfold® system requires less maintenance

Electric, gas or steam heating

Documentation

Roll. diameter	500 mm	Type of equipment	Rink
Roller length	3200 mm	Electrical heating	65 kW
Gas heating	66 kW	Roller motor	0,37 kW
Fan motor	2×0,18/0,255 kW	Capacity	90 kg/h
Roller speed	1,5-8 m/min	Electrical connection	3×380-415V +N 50/60Hz, 3×208-240V 50/60Hz
Dimensions (H×W×D)	1568×3950×1185 mm	Packed dimensions (H×W×D)	1900×4176×1356 mm
Net weight	1680 kg	Gross weight	2000 kg
Residual moisture	40%	Volume (packed)	10,76 m3
Steam heating	88 kg/h	EC-microprocessor programmer	standard
