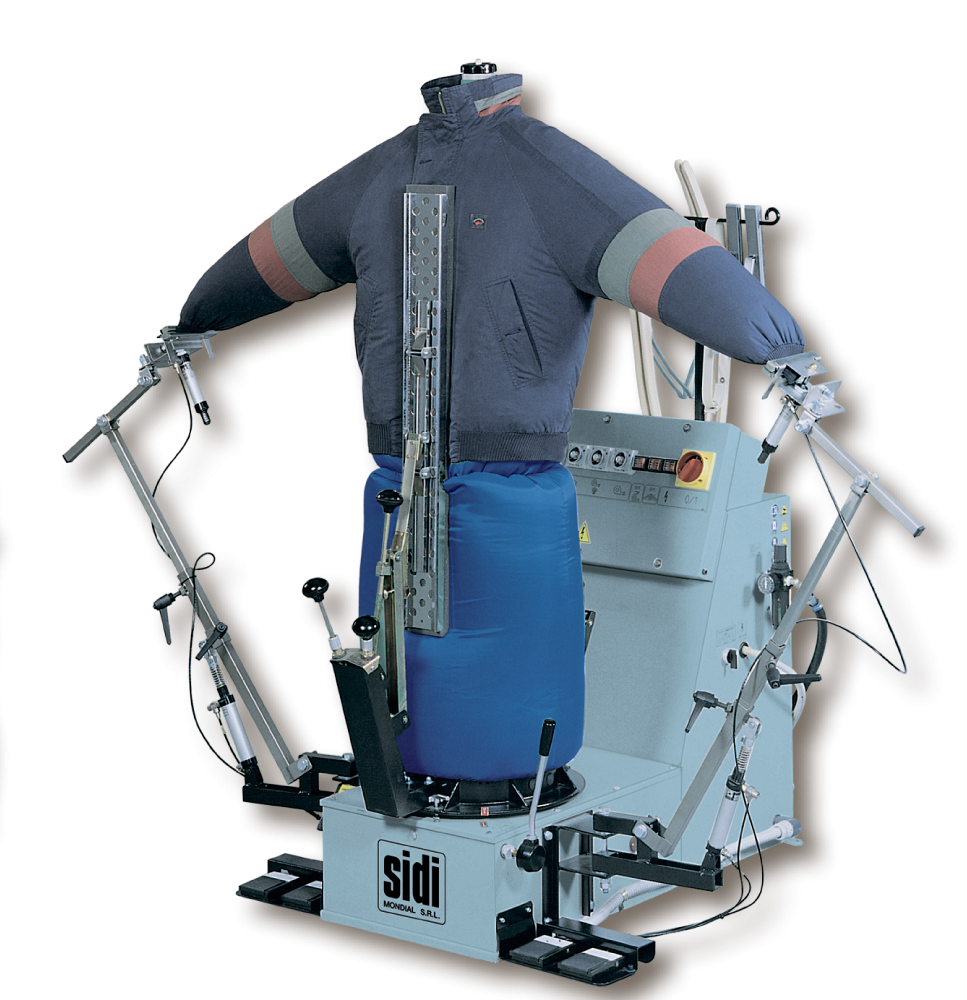

•Mod. M-781/GV, for connection to external steam and air supplies, with pneumatically operated sleeve clamps and a special powerful fan. By request it is available with stainless steel body (AISI 304).
| Equipment | Mannequins | Required power | 1/2 ” |
| Steam working pressure | 4 ÷ 6 bar | Steam consumption | 10 ÷ 15 kg/h |
| Air inlet | 1/4 ” | Air working pressure | 6 ÷7 bar |
| Encumbrance | MG-MGP-MGE 650 x 980mm MGGV 2020 x 980 mm | Net weight | MG 75-MGGV 95 kg |
| Gross weight | MG 97 – MGGV 125 kg | Overall dimensions | MG 1430 x 780 x 1050 mm MGGV 1180 x 1780 x 1750 |
| Volumen | MG 1,18 m³ - MGGV 3,68 m³ |
