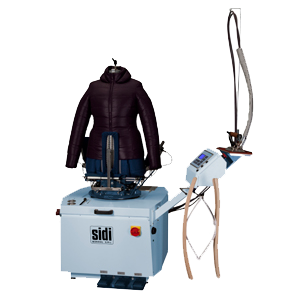

Form finisher Sidi 502

With PLC system as standard allowing up to 10 programs to be customised and saved, a 270° rotating dummy; lateral and rear pneumatic clamps for vents.

EquipmentMannequinsRequired power400 V/3+N/50Hz* - 220 V/3/60 Hz
Superheater heating el. 0,9 kW Steam Inlet1/2"
Fan motor1,1 kWReturn outlet1/2"
Steam working pressure5 ÷ 6 bar - 70 ÷ 87 psiSteam consumption15 ÷ 20 kg/h - 33 ÷ 44 Lbs/h
Air inlet1/4"Air working pressure6 ÷ 7 bar - 87 ÷100 psi
Air consumption10 NL/min - 0,35 cubic feet/cycle Encumbrance1050x1260 x 2350max ÷ 1600min mm 41x50x93 max ÷ 63min in
Net weight130 kg – 287 LbsGross weight160 kg - 353 Lbs
Overall dimensions970 x 880 x 1760 mm - 38 x 35 x 70 inVolumen1,5 m³ - 53 Ft³
