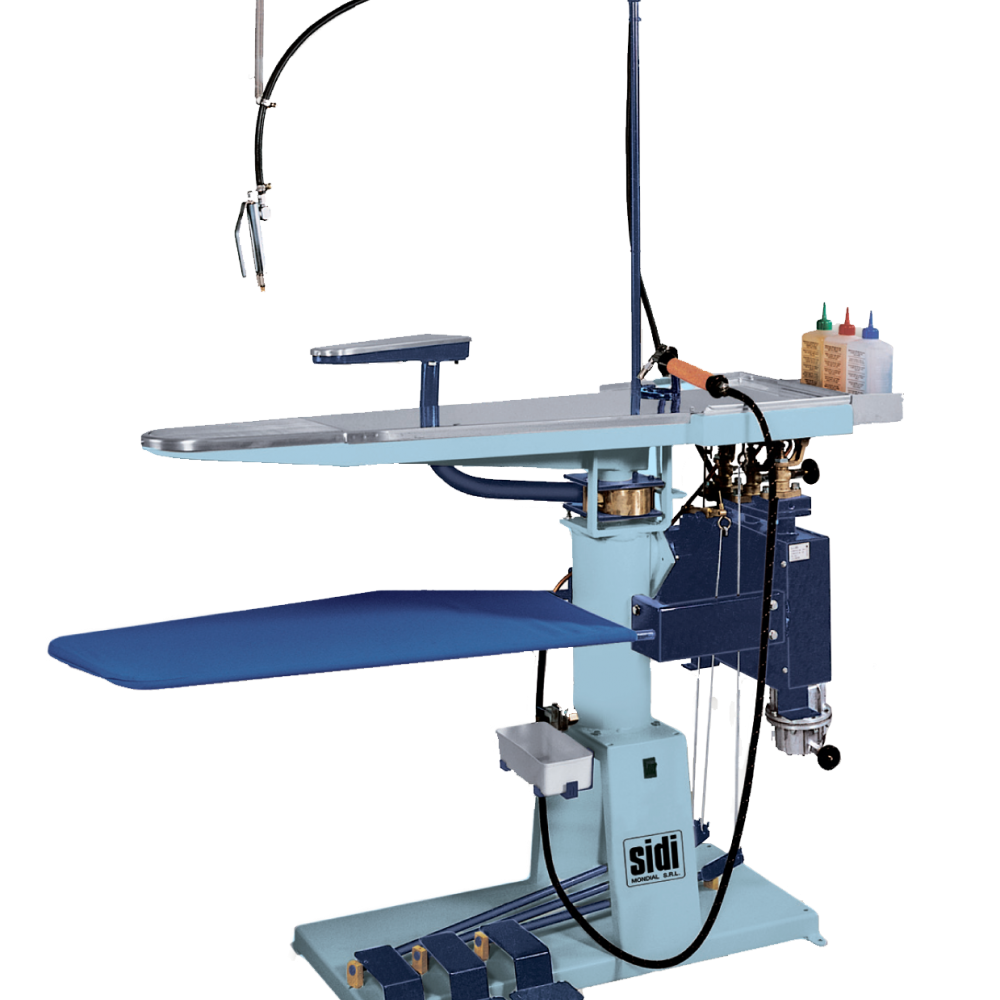

Vacuum (which can also be supplied by a powerful central vacuum unit) is concentrated on both nose of board and swinging sleeve board. •Steam is available in three different sorts: dry steam, moist steam and wet steam. •Compressed heated air for drying. Available extras: Built-in suction fan – Water spray gun with condenser – Cold spotting gun with accessories.
|Equipment||Spotting tables||Required power||230/1 or 400V/3+N- 50Hz*|
|Vacuum Motor||0,25 kW||Steam Inlet||1/2”|
|Return outlet||1/2”||Steam working pressure||4 ÷ 6 bar|
|Steam consumption||6 ÷ 8 kg/h||Air inlet||1/4 ”|
|Air working pressure||7 ÷ 8 Bar||Air consumption||150 ÷ 200 Nl/min|
|Encumbrance||1440 x 700 mm||Net weight||65 kg|
|Gross weight||85 kg||Overall dimensions||1380 x 580 x 1070 mm|
